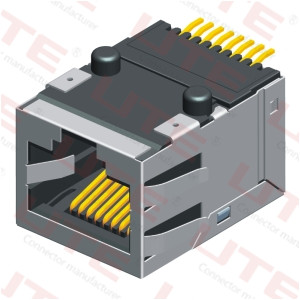

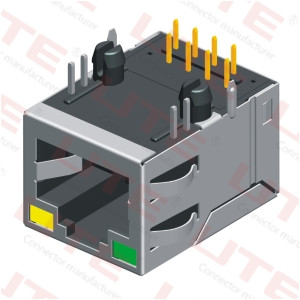

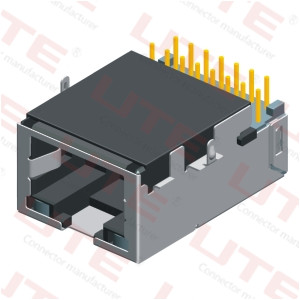

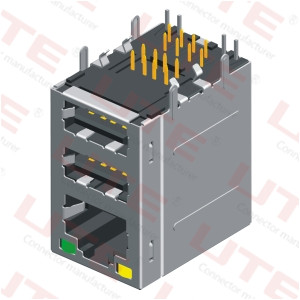

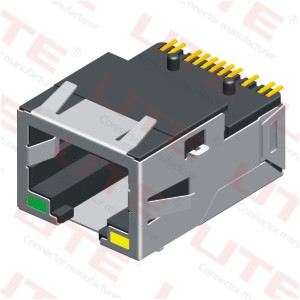

RJ45模块的核心是模块化插孔。镀金的导线或插座孔可维持与模块化的插座弹片间稳定而可靠的电器连接。由于弹片与插孔间的摩擦作用，电接触随着插头的插入而得到进一步加强。插孔主体设计采用整体锁定机制，这样当模块化插头插入时，插头和插孔的界面外可产生最大的拉拔强度。RJ45模块上的接线模块通过“U”形接线槽来连接双绞线，锁定弹片可以在面板等信息出口装置上固定RJ45模块
Electrical Current Rating : 1.5 Ampere Insulation Resistance : 1000 MΩ Min Dielectric Withstanding : 1500 V Contact Resistance : 30 mΩ Max | Mechanical Mating Force : 30N Max Unmating Force: 50N Min Durability : 750 Cycles |
Material Housing : Nylon/PBT UL 94V-0 Contact : Phosphor Bronze | Plating Contact : Gold plated on contact area Nickel plated overall |
Environment Characteristics Operating temperature : -40℃ to +85℃ | Feature Meets IEEE 802.3 spectification Jack cavity conforms to FCC rules and regulation Part 68 subpart F |
